Cable Pulling Conductors Adjustment 80KN Self Gripping Clamps

Cable Pulling Conductors Adjustment 80KN Self Gripping Clamps
Cable Pulling Conductors Adjustment 80KN Self Gripping Clamps

Large Image :  Cable Pulling Conductors Adjustment 80KN Self Gripping Clamps

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SKL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Std export term
Delivery Time: 5 ~ 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / week
Detailed Product Description
Using: Adjustment ,Sagging Rated Load: 80 KN
Applicable Conductor: ACSR1120 Advantage: Light Weight
Origin: Ningbo China Certification: ISO
High Light:

aluminum alloy conductor clamps

,

conductor wire clamps

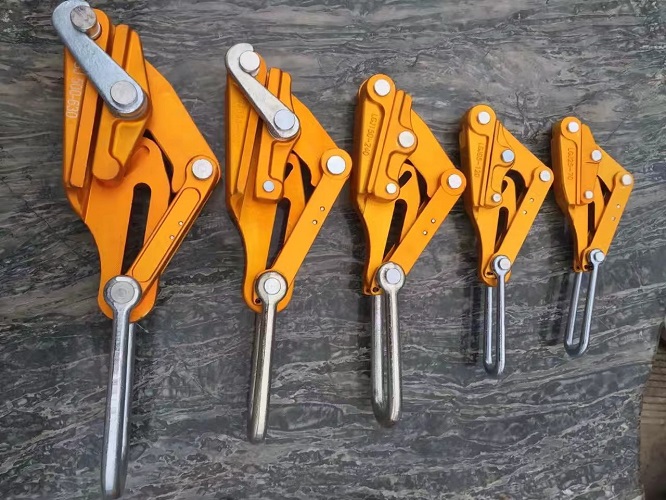

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging



This wire grip clamp is for big conductors adjustment or sagging, which is processed during the heat treatment, and high temperature conditions,( quenched and tempered). Planar shape clamping jaw is suitable for pulling steel strand and steel wire, will not damage the cable's surface.

Wire Roper Clamp Features:

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging

1. Forged with high strength Aluminum alloy;

2. Light in weight;

3. no damaging on wire.

Wire Grip Shipment

1. The wire grips will be shipped in plywood case by air or by ship.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Self Gripping Clamp Detailed Spec

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging

Item No. Model No. Rated Load
(KN)
Applicable Conductor
(ACSR-MM2)
Max Open
(MM)
Unit Weight
(KG)
0201 SKL-7 7 25~70 14 1.0
0202 SKL-15 15 95~120 18 1.4
0203 SKL-25 25 150~240 24 3.0
0204 SKL-40 40 300~400 32 4.0
0205 SKL-50 50 500~630 36 6.6
0206 SKL-40G 40 400 32 4.3
0207 SKL-50G 50 500 34 7.0
0208 SKL-50GA 50 630 36 7.3
0209 SKL-60G 60 720 38 9.2
0210 SKL-70G 70 900 42 14.0
0211 SKL-80G 80 1000 45 18.0
0212 SKL-80GA 80 1200 48 18.0

Cable Pulling Conductors Adjustment 80KN Self Gripping Clamps 0

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality

About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
