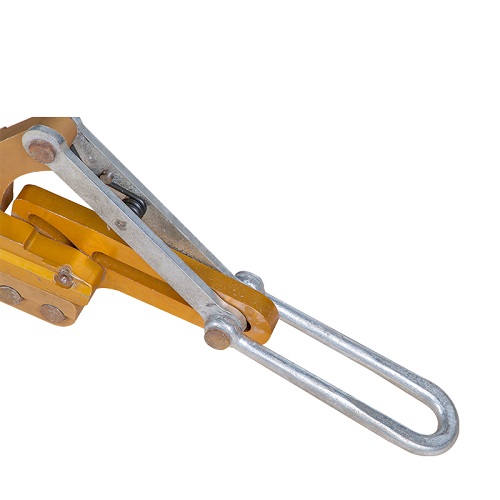

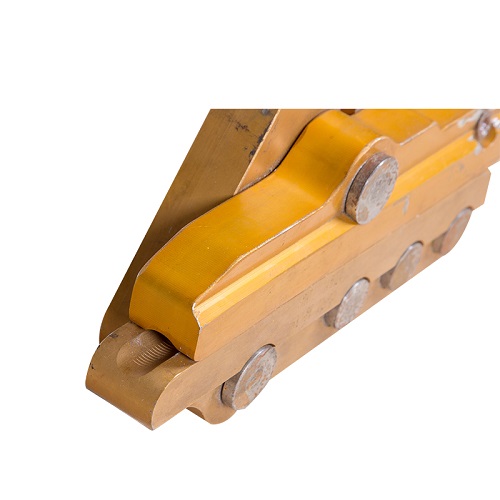

OPGW Diameter 11 - 15 mm Come Along Clamps 16KN Aluminum Material Wire Grips

OPGW Diameter 11 - 15 mm Come Along Clamps 16KN Aluminum Material Wire Grips
OPGW Diameter 11 - 15 mm Come Along Clamps 16KN Aluminum Material Wire Grips OPGW Diameter 11 - 15 mm Come Along Clamps 16KN Aluminum Material Wire Grips

Large Image :  OPGW Diameter 11 - 15 mm Come Along Clamps 16KN Aluminum Material Wire Grips

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SKG-1.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Rated Load: 16 KN Suitable OPGW: 11~15MM
Item: Optical Cable Grip Weight: 5.6kg
Application: OPGW Site Material: Aluminum
High Light:

wire pulling tools

,

fiber optics tools and equipments

OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips



Characteristic

It is used for holding the OPGW overhead optical ground wire.

The diameter of optical cable is same as the size of clamp,in order to ensure clamping firmly, reduce the pressure of clamped parts and protect the inside fiber of cable from damaging.

The body is forged from high strength aluminum-titanium alloy , and use the bolt to fasten to prevent the line slipping and hurting.You need to indicate the outer diameter of optical cable and the model number of optical cable when you place the order.

Technical Data

Model No. Model Radial Diameter(mm) Rated Load(KN) Weight(kg)
20101 SKG-2.5 Φ8-20 25 3.8
20103 SKG-1.6 Φ11-15 16 5.6
20104 SKG-1.6 Φ15-17 16 5.6

Customer in Heart, Quality in Hand, Technology in the Lead.

About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
