Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope

Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope
Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope

Large Image :  Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Model: SHDN Rated Load: 50kN
Feature: MC Nylon Sheave Conductor: ACSR720
Number Sheave: 5 Weight: 200kg
High Light:

overhead line stringing block

,

stringing pulley block

10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block



Large Diameter Bundled Conductor Stringing Block Introduction:

10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block

Our 916mm OPGW stringing pulley block, sometimes it names nylon Sheave Pulley block, or conductor Nylon Pulley Block, which has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters, and the dimension of cable stringing pulley block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Feature
10151 SHDN916 1 50 51 MC nylon sheave
10152 SHSQN916 3 75 120
10153 SHWQN916 5 150 200

This 1040mm bundled conductor stringing pulley block has the conductor diameter of no more than LGJ1120. That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1120 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ1040×Φ900× 125 (mm).

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features
10165 SHDN1040 1 50 60 MC nylon sheave
10166 SHSQN1040 3 105 200 Middle: MC nylon sheave Conductor: rubber coated nylon sheave
10167 SHWQN1040 5 180 330



Item number Model Number of sheave Rated load (kN) Weight (kg) Feature
10168-1 SHDN1160 1 60 65 Middle :MC nylon sheave
10168-2 SHSQNK1160 3 120 220 Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave

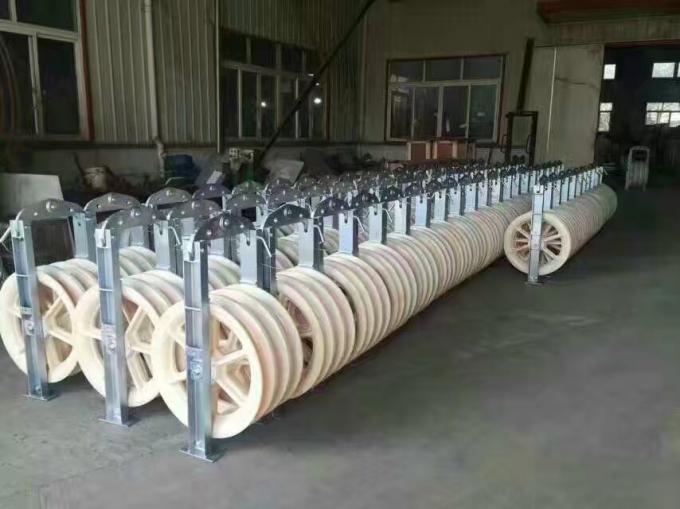

Overhead transmission block is the pay off pulley block, this pulley block with three wheels, also can be one ~five wheels, they are useful in power construction.

1. Maximum suitable conductor ACSR1250

2. Dimension of block for conductor (outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).

3. Dimension of block for Steel Wire Rope (outside diameter× root diameter × sheave width) Φ1160×Φ1000×130(mm).

4. The rubber lined MC nylon sheave is half lined.

10T MC Nylon Sheave Large Diameter Bundled Conductor Stringing Block
