Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks

Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks
Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks

Large Image :  Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHR-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Name: Stringing Block Application: Stringing Conductor
COnductor: LGJ240-400 Load: 50kn
Material: Nylon Weight: 8kg
High Light:

cable pulling tools

,

transmission tools and equipment

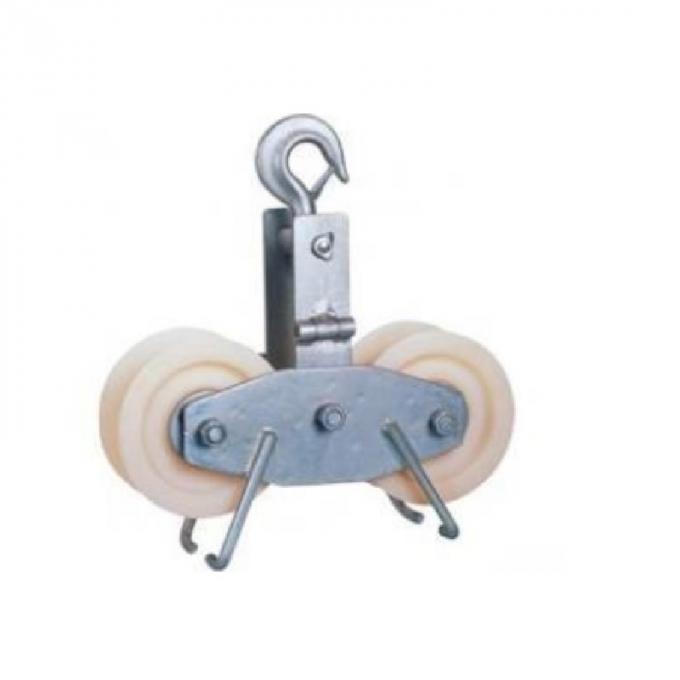

50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel



Model SHR-2.5 tandem sheave stringing blockare made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.

Technical Data

50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel

Rated load is 25kn,breaking force is 50kn, weight is very light and convenient to operate, besides, it has aluminum sheave and nylon sheave.

Item Number Rated Load(KN) Breaking Load(KN) Weight(kg) Remark
10211 25 50 9.8 Aluminum sheave
10212 25 50 8 Nylon sheave

Notes: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel

Sheave Dimension φ180x79mm; Suitable Conductor:ACSR300-500mm2
Uses: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel

Apply to leading and paying off large section conductor. Splicing sleeve can pass through from the groove.
Specification: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel

Tandem Sheave Overhead Stringing Blocks:Hanger includes hook type, plate type and ring type. This is need indicated when customer place order. Special size can be customized.



Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks 0

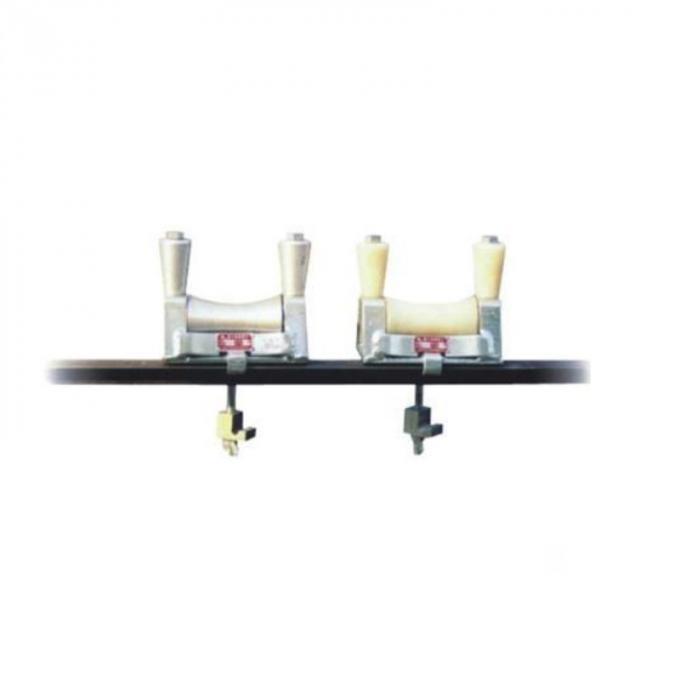

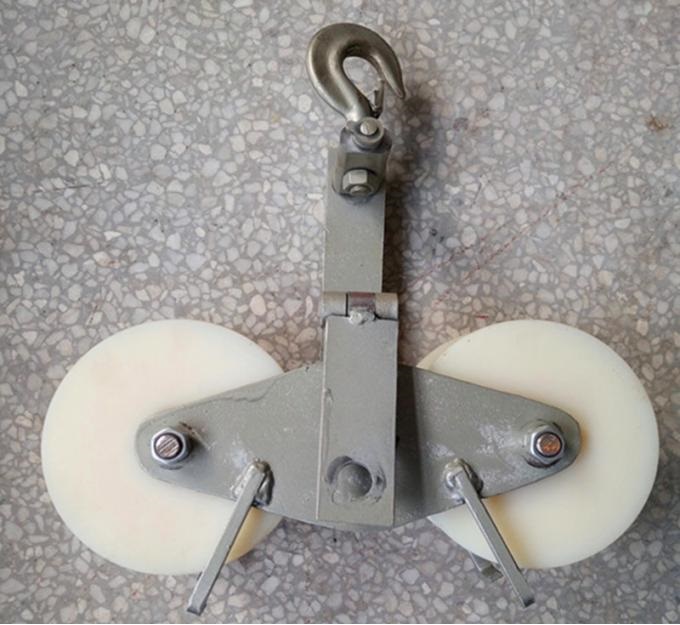

Other Transmission Stringing Pulleys:

Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks 1Model SHR - 2.5 Tandem Sheave Stringing Block Nylon Sheave Stringing Blocks 2

Can you customize the products as per our request?
A.: Yes, we do OEM and ODM. We could make the product suggestion based on your idea and budget.

How to get a sample from you?
A.: All samples will be free if unit cost under 10USD, but the freight should be on your side.
If sample sent by your express account like DHL, UPS etc, we will send sample to you directly (freight collect)

If sample sent by our express account like DHL,UPS etc, you should pay freight in advance (freight prepaid)
Any sample cost could be returned to you as part payment for next large order

How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.

What are your Payment terms?

A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.
