Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope

Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope
Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope

Large Image :  Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Braided rope
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Meter
Price: negotiable
Packaging Details: Roll
Delivery Time: 8-10 work day
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 meter / day
Detailed Product Description
Type: Double Braided Nylon Rope Using: Pulling Line
Site: Construction Color: Any Color Available
Material: PP, Nylon Strands: 16 Strands,24 Strands
High Light:

tower safety equipment

,

tower climbing kit

Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope



Quick Information

Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope

1 Products Name hot sale high strength soft double braided nylon rope
2 Brand Lingsheng
3 Material nylon,polyamide
4 Color (Any color is valid, as you need)
5 Certification ISO9001
6 Minimum Quantity 500M
7 Package roll,coils,bundles or reel.(carton,woven bag)
8 Delivery Time Within 10-20Days afer receiving the deposit

Feature:

Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope

1. Material:100% polyester/polyamide/nylon

2. Type:Braided or twisted rope

3. Spefication:Diameter from 4mm-30mm; and we can design according to your needs

4. Color:White, black, red, yellow, blue and green or others

5. Usage:For entertainment, camping or others

6. Packing:Pack it in rolls or according to your needs

7. OEM is available

8. Certification:ISO

Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope 0

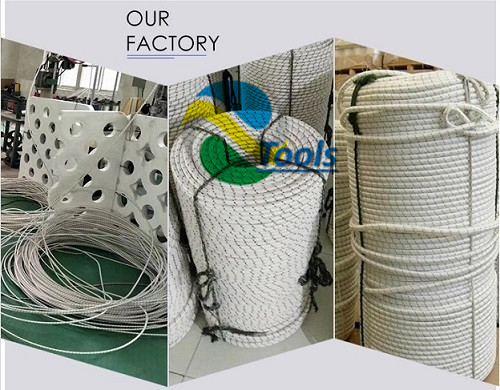

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.

Date Sheet

Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope

Diameter(mm) Diameter(Inch) Weight(kg/220M) Breaking strength
Polyester Nylon
4 5/32 2.21 290kg 320kg
5 3/16 3.45 400kg 500kg
6 7/32 4.96 550kg 750kg
7 1/4 6.75 760kg 1000kg
8 5/16 8.82 1000kg 1300kg
9 11/32 11.16 1200kg 1700kg
10 3/8 13.78 1600kg 2000kg
12 1/2 19.85 2300kg 3000kg
14 9/16 27.01 3100kg 4000kg
16 5/8 35.28 4100kg 5300kg
18 3/4 44.66 5000kg 6700kg
20 13/16 55.13 6300kg 8200kg

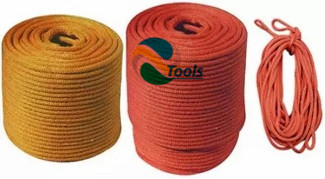

Weave Silk Insulated Rope Application to cable pulling rope Introduction

The double layer braided nylon rope is used for pulling OPGW under hotline condition. It is specially braided from polyamaid fiber with double layer.
The rope is insulated with high strength pulling force, low elongation, light weight and wear-proof in the line stringing operation.

Product Description

Rope Size: 6-20mm
Rope Material: Polyester, PP,
Rope Color: any color available
Rope Structure:16 strands,24 strands
Rope Packing: roll, hank, reel

High strength great resistance

Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope 1
