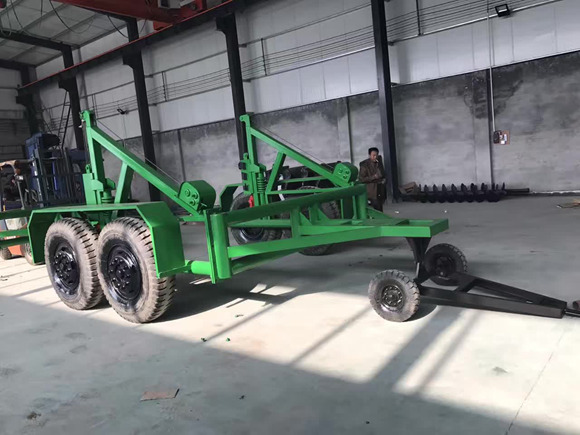

12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint

12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint
12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint 12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint

Large Image :  12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Name: Cable Drum Carrier Capacity: 12 Ton
Type: Trailer Size: Customized
Using: Transporting The Reel Overall Sizes: 4300×3400×2800
High Light:

tower erection tools

,

construction tools and equipments

12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint

Cable drum trailer, cable reel trailer,Technical Data

12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint

Model Max Load Weight Max Lifting Height Inside Wide length Wide High
(T) (kg) mm mm (mm) (mm) (mm)
LS-3T 3 600 1550 1400 3700 2200 1800
LS -5T 5 900 1750 1650 4000 2700 2180
LS -8T 8 1200 1900 1950 4200 3200 2300
LS -10T 10 1500 2000 2000 4300 3400 2400
LS -12T 12 2600 2000 2000 4300 3400 2400

12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray PaintApplication
1. Used for cable drum hauling and cable pulling-pushing.
2. Equipped with hydraulic hand device, can lift cable drum easily.
3. The traction tire on the font of cable trailer can change angle at random and easy to move.
4. Equipped with damping device, the stability of trailer was increased greatly.
5. Remarks: the trailer can be transported by container after disassembly.
Detailed Description:12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint
1. This strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient.
2. Uses in loading and unloading, the transportation, the large-scale reel laying.
3. Of course you can according to the need, have custom-made the size.
More To 12 Ton Cable Drum Carrier, Cable Reel Trailer With Axis Bar for Cable Laying

Model Rated Load Weight(kg) Applicable coil diameter(mm) Applicable coil width(mm) Overall dimensions(mm)
LS-12T 12T 3000 ≤3500 ≤1850 4300×3400×2800

Shipment:12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package:12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint
1. The blocks will be loaded in container.
2. It also can be packed in plywood case or steel frame case.
12 Ton Load Capacity Cable Drum Carrier With Surface Treatment Spray Paint 0
