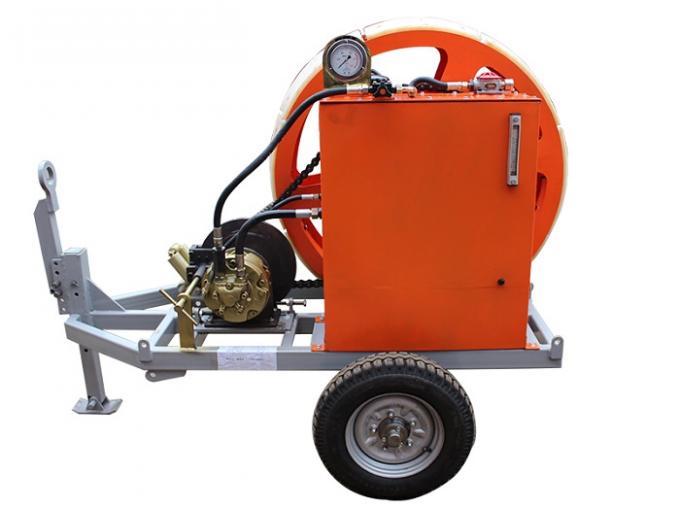

OPGW Stringing Hydraulic Puller Tensioner , 0.75 T Conductor Stringing Machine

OPGW Stringing Hydraulic Puller Tensioner , 0.75 T Conductor Stringing Machine
OPGW Stringing Hydraulic Puller Tensioner , 0.75 T Conductor Stringing Machine OPGW Stringing Hydraulic Puller Tensioner , 0.75 T Conductor Stringing Machine

Large Image :  OPGW Stringing Hydraulic Puller Tensioner , 0.75 T Conductor Stringing Machine

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZM7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets / month
Detailed Product Description
Model: SA-YZM7.5 Name: Hydraulic Tensioner
Selling Point: Light, Convenient Warranty: 1 Year
Certification: ISO Tesnion Force: 7,5KN
High Light:

hydraulic cable tensioner

,

tension stringing equipment

Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing



Application:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing

Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing is applicable to release wire, ground wire, cable in transmission line project.

Uses:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing

Apply to stringing the following size like ADSS, TFOC, OPGW-110, maximum conductor diameter 20 and various steel strand, ACSR,

fiber tow rope or small diameter steel wire tow rope.
Features:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing

1. Tension produced by haydraulic pressure;

2. It is covenient for transportation and construction in mountainous area because of light weight;
3. Easy operation and maintenance.

Characteristic:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing

1) high efficiency ;

2) safe and reliable;

3) widely used;

4) high quality

5) convenient to carry

Technical Data:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing

Oversize is 2300*1250*1620mm, weight 450kg,max tension is 7.5KN, rated tension is 5KN, max velcocity is 40m/min, diameter of tension wheel is 1100mm,applicable conductor wire <=LJ240,and <=LJ-185/10,suitable hydraulic oil type is No 46 antiwire hydraulic oil. max oil temperature is 70degress, rated working pressure is 25Mpa.

Model Type YL-75
Overall Size(mm) 2300*1250*1620
Weight(kg) 450
Max Tension(KN) 7.5
Rated Tension(KN) 5
Max Velocity(m/min) 40
Diameter of Tension wheel(mm) 1100
Applicable Conductor Wire ≤ LJ-240
≤ LJ-185/10
Suitable Hydraulic Oil Type No.46 Antiwear Hydraulic Oil
Max Oil Temperature(°C) 70
Rated Working Pressure(MPa) 25

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;
