Safe Hydraulic Puller Tensioner , SA-YZ2X55 Transmission Line Stringing Equipment

Safe Hydraulic Puller Tensioner , SA-YZ2X55 Transmission Line Stringing Equipment
Safe Hydraulic Puller Tensioner , SA-YZ2X55 Transmission Line Stringing Equipment Safe Hydraulic Puller Tensioner , SA-YZ2X55 Transmission Line Stringing Equipment

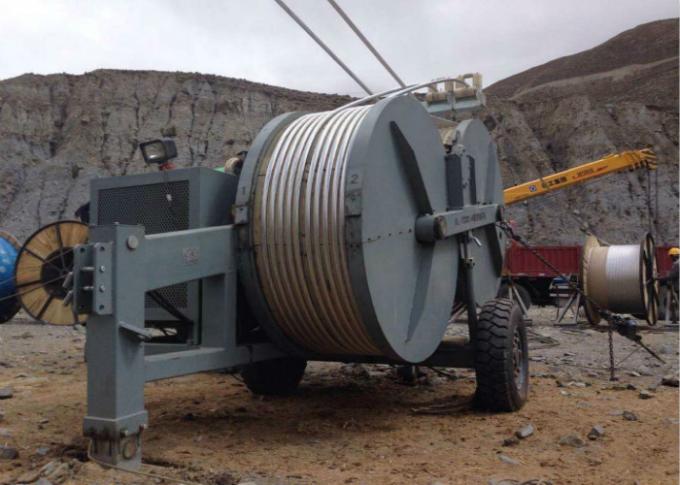

Large Image :  Safe Hydraulic Puller Tensioner , SA-YZ2X55 Transmission Line Stringing Equipment

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ2X55
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Detailed Product Description
Model: SA-YZ2X55 Max Tension: 2X55,1X100kn
Groove Dia: 1600mm Number: 2X5
Weight: 7500kg Reducer: RR
High Light:

conductor stringing machine

,

tension stringing equipment

SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner



Our SA-YZ2×55 Hydraulic Tensioner is characterized by high reliability, safe operation, and superior quality. Its bullwheel is lined with abrasion resistant MC nylon material. With infinitely variable tension control system, this product can achieve the constant-tension stringing operation.

Also, it contains two sets of hydraulic power output interface, which is able to connect the hydraulic conductor reel stand. In case of hydraulic failure, the spring applied hydraulically released brake will run automatically to guarantee the safety.

Overhead transmission line hydraulic cable pulling tensioner for 2*55 or 1*110KN

Application:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner

Overhead transmission line hydraulic cable pulling tensioner for 2*55or 1*110KN is adequate to tension releasing various conducts and earthwires, and it as one pull one or one pull four using.

Feature:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner

1. Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .

4. Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.

Essential Parameters:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner

Model SA-YZ110 Hydraulic Tensioner
Maximum Tension (kN) 2× 55 or 1× 110
Continuous Tension (kN) 2× 50 or 1× 100
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ1600
Number of Grooves 2× 5
Maximum Pullback (kN) 2× 50 or 1× 100
Maximum Speedback (km/h) 2× 2.1
Maximum Diameter of Suitable Conductor (mm) Φ42.5
Engine Power / Speed (kW/rpm) 54/2500
Dimensions (mm) 5000× 2240 × 2730
Weight (kg) 7500

Main Configurations

Engine Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Main Hydraulic Valve Rexroth (BOSCH)
Reducer RR (Italian)
Radiator AKG
Hydraulic Instrument WIKA
