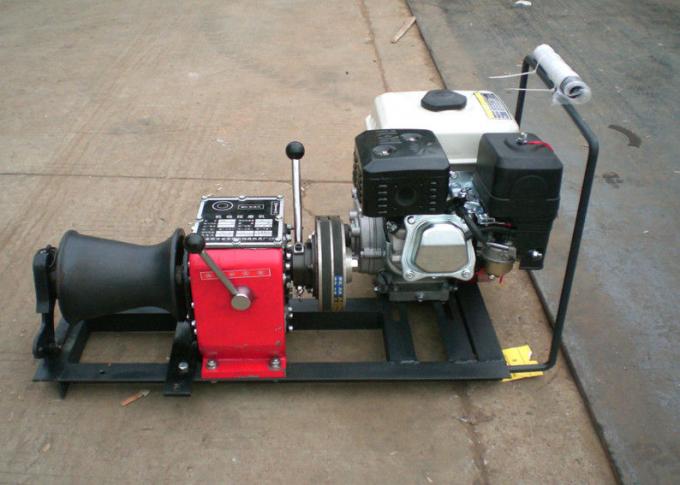

4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine

4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine
4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine 4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine

Large Image :  4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM1Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Modle: JJM1Q Engine: Honda Gasoline
Name: Cable Winch Puller Rated Power: 4HP
Pull Force: 10 KN Weight: 36 Kg
High Light:

gasoline powered winch

,

gas powered winch

1 Ton Gasoline Engine Small Cable Pulling Winches for Power Construction



Application

1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Structure

1 Ton Gasoline Engine Small Cable Pulling Winches for Power Construction
It is made up of the roller wheel, transmission, diesel or gasoline engine and the base frame composition, motor cutter grinding works: winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force, after shifting box of gear to achieve the required speed, the machine is located on steel, robust and easy to move.

Technical Data 1 Ton Gasoline Engine Small Cable Pulling Winches for Power Construction

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q HONDA Petrol engine 4 HP Slow 10.0 0.8 36
Fast 15.0 0.6
Reverse 12.0 No Lifting
Electric motor Slow 10.0 0.8 46
Fast 15.0 0.6
Reverse 12.0 No Lifting

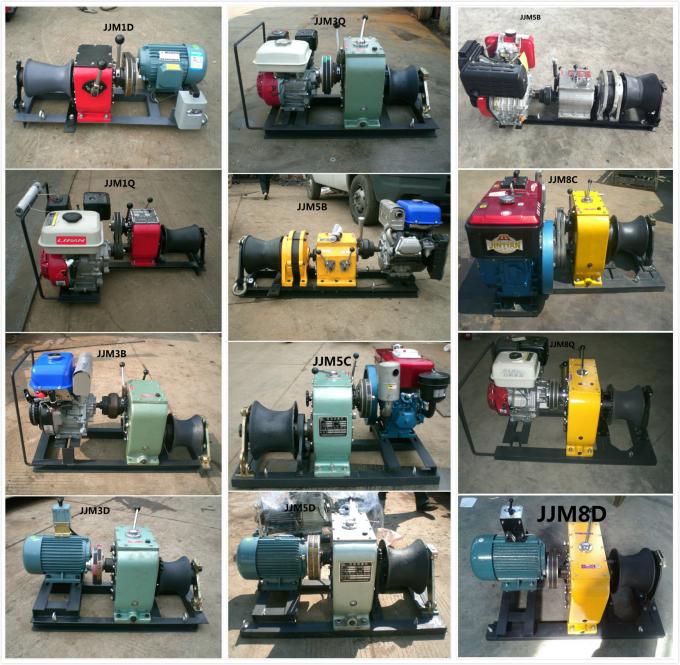

Classification 1 Ton Gasoline Engine Small Cable Pulling Winches for Power Construction

It is classify by engine.

1. diesel engine winch

2. gasoline engine winch

3. electric engine winch

It is classify by tranmission system

1. belt driven transmission

2. shaft driven transmission

Features 1 Ton Gasoline Engine Small Cable Pulling Winches for Power Construction

1. Speedy and Efficient;
2. Safe and Reliable;

3. Compact structure;

4. Small volume;

5. Light in weight;

4HP Power Construction Cable Winch Puller Petrol Engine Lifting Machine 0
