JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission

JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission
JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission

Large Image :  JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM5D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Model: JJM5D Name: Electric Winch
Pulling Force: 5T Engine Power: Electric Engine 220V/380V/2.2KW
Pulling Speed(m/min): Fast 9m/min
High Light:

gasoline powered winch

,

portable capstan winch

JJM5-D Cable Pulling Tools 5 Ton Electric Wire Rope Cable Winch Puller



5 tons Cable Pulling Machine Cranes Winch with Electric Engine 220V 380V Pulling Hoisting

Operation methods

1: before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position

2: when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly

3: when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.

Technical Data JJM5-D Cable Pulling Tools 5 Ton Electric Wire Rope Cable Winch Puller

Model Type Engine Power Gear Pulling Speed(m/min) Pulling Force(Ton)
JJM5-D Electric Engine Slow 5 5
Quick 9 3
Reverse 3 No lifting

It is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

5 Ton Electric Engine Powered Hoist Winch for Power Construction Application

5 Ton Electric Engine Powered Hoist Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission 0

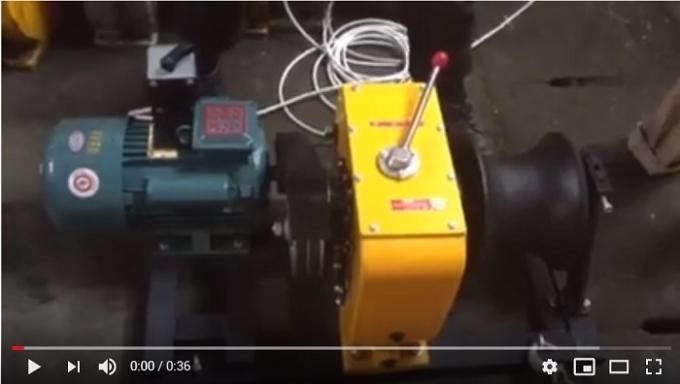

Please click below picture to find the video about application method

JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission 1
