Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand

Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand
Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand

Large Image :  Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHT
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/WEEK
Detailed Product Description
MATERIAL: STEEL SHEAVE MODEL: SHT 150*32
NAME: GROUNDING WIRE PULLEY BLOCK RATED LOAD: 10KN
FEATURE: SIDE OPEN TYPE AFTER SERVICE: AVAILABLE
High Light:

transmission line stringing block

,

stringing pulley block

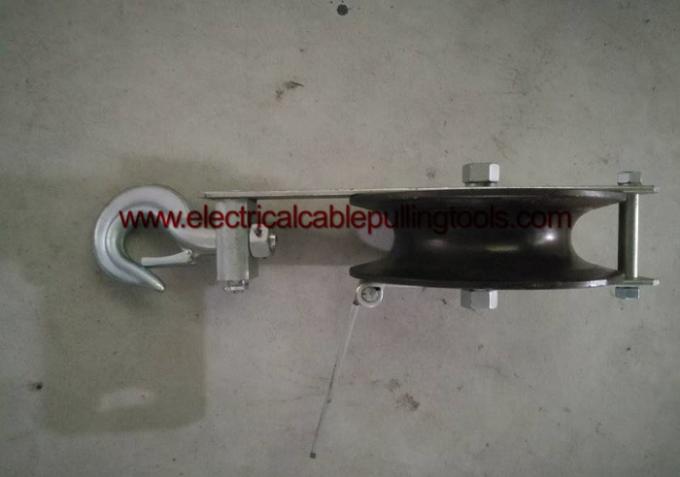

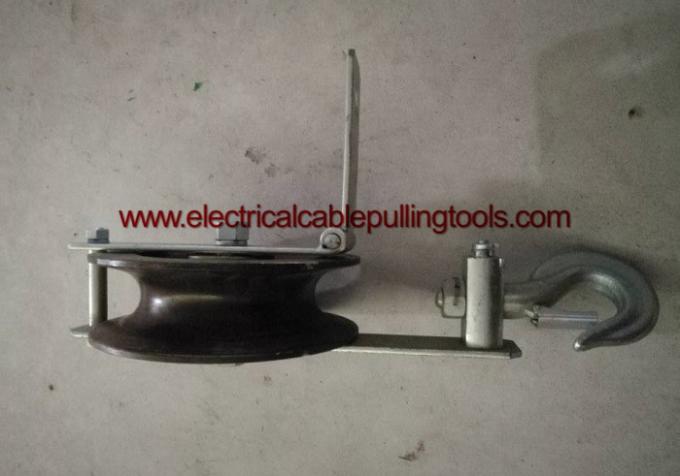

Open Type Steel Sheave Grounding Wire Stringing Pulley Block for Pull Steel Strand



Earth wire stringing block are suitable for stringing earth wire.



Ordernumber Model Applicablestranded wire Ratedload (kN) Weight(kg) Features
10331 SHT-120×30 GJ35 5 2.2 Castingironsheave
10332 SHT-150×32 GJ70 10 3.6
10333 SHT-165×50 GJ120 20 4.5
10334 SHT-200×60 GJ150 20 5.2
10341 SHTN-120×30 GJ35 5 1.6 Nylonsheave
10342 SHTN-150×32 GJ70 10 2.4
10343 SHTN-165×50 GJ120 20 3.3
10344 SHTN-200×60 GJ150 20 3.8




Quick information:

1. Transmission line Stringing block

2. It is more strength then the SHD,as the straight frame decide

3. the rated load is 10KN

4. Pulling steel strand wire rope

5. Ningbo Donghuan Brand.

Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand 0

Open Type Steel Cable Pulling Pulley Block For Pull Steel Strand 1
