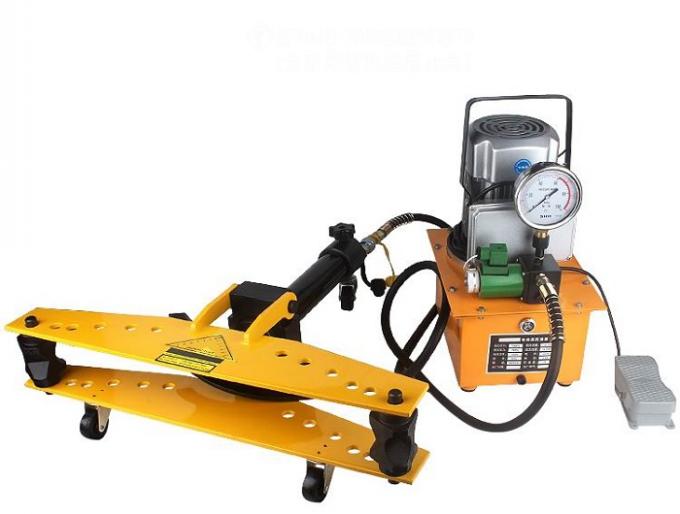

CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump
CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

Large Image :  CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

Product Details:
Place of Origin: Ningbo china
Brand Name: Linkai
Certification: ISO
Model Number: SWG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description
Name: Hydraulic Pipe Bender Model: CPB-2
Out Put: 160kn Stroke: 250mm
Weight: 40kg Work With: Hydraulic Pump
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

CPB-2 Busbar Processing Machine , Hydraulic Pipe Benders Along With Electric Pump



Hydraulic Pipe Bender

Busbar Bending Machine , DWG-3D Electric Hydraulic Pipe Bender with Pump

Item number

06251 06252 06253 06254 06255
Model CPB-1 CPB-2 CPB-3 CPB-4 CPB-5

Cutting force

100 250 320 380 380

(MM)

Stroke

180 250 320 380 380
Wall thickness 2-5 2.5-5 2.5-5 2.5-6 2.5-6

Weight

18 40 85.5 128.5 177.5

(rad)

Bending angl

π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π



(mm)

Pipe diameter

Φ13 Φ16

Φ19 Φ22

Φ28 Φ34

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89



Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89

Φ108

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89

Φ108 Φ114

Features:

1 Manual hydraulic pipe bender is suit for common water pipe, wire pipe, thick-wall conduit tube, bending the angle with 90º.

2 1/2”-2” can be shaped 90º one time, for 2 1/2”-4”, pipe must be moved and bended for five times to the demanded radian.

Function

1. It is designed for bending bus bar in 125mm used in power generation factory.powertransmission station and copper bus bar and aluminum bus bar.
2. 2 in l horizontal and erective bending available. lt's really one machine in two function.
3. The hydraulic cylinder with 35 Ton of outlet force. lt's very powerful in quick speed and high efficiency.
4. It is made in flip style for easy taking workpiece.
5. The unit body is made from high tough alloy steel. As a result,it's light weight for carrying conveniently. Bending bus bar smoothly
6. Ouick coupling for easy load and unload.
7. Standard and assembling;Horizontal bending die:One moveable die.two errective poles, one adaptor.Erective bending die.one die frame.two big grip plank.two small grip plank.seven crescent die plate,two support for erective bending.
